Select Past Projects

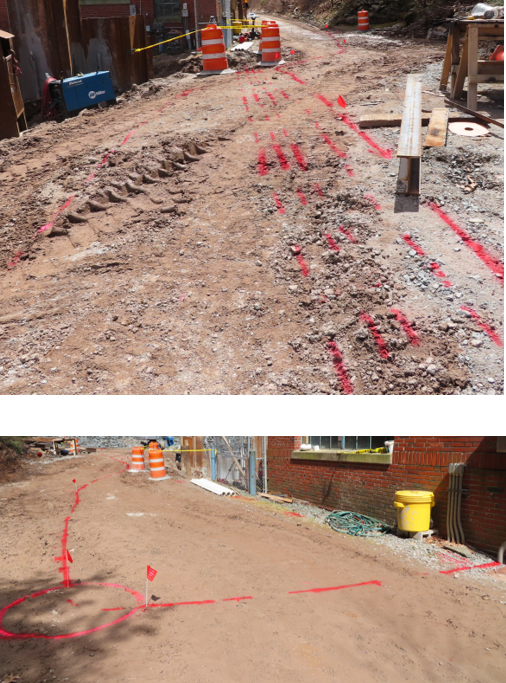

Electric lines and a buried access vault

EM line locators detected electric lines from exposures in an accessible electric vault. Another buried access vault was located using an EM metal-detector and a GPR.

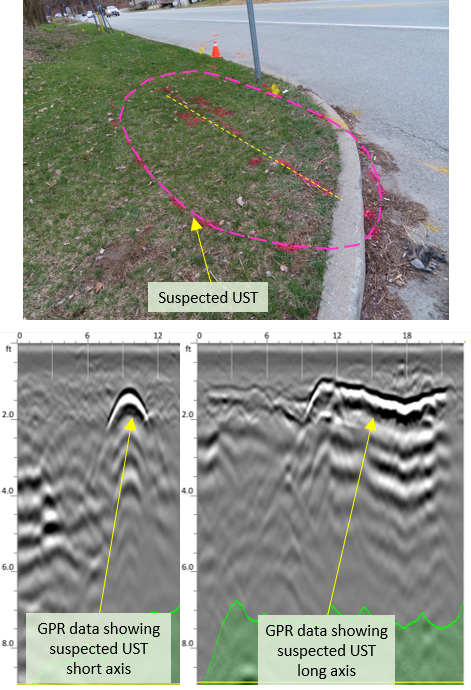

Suspected UST
Suspected UST detected during a utility avoidance investigation for soil borings.

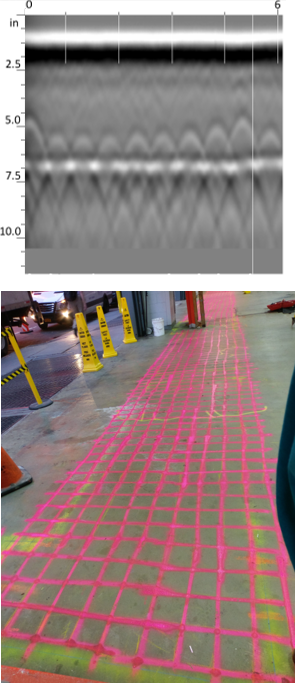

Rebar in Concrete
Used High Resolution GPR to mark locations of rebar in concrete.

Utility Marking Color Code based on the

American Public Works Association.

RED -

Electric

YELLOW -

Natural Gas, Steam, Petroleum lines and structures, Gaseous features

ORANGE -

Communication

BLUE -

Water

GREEN -

Sewer, Drainage

PINK -

Utilities and Anomalies of Undetermined Use,

Temporary Survey Markings

WHITE -

Proposed Excavations and Drilling Locations

Geophysical Services
CGE offers Geophysical Services to include:

  • Private Utility Markouts.

  • Underground Storage Tank (UST) Markouts.

  • Investigations using Ground Penetrating Radar (GPR) and Electromagnetic (EM) instruments to locate buried conductive and non-conductive features.
Private Utility Markouts involve more than just GPR...

Investigations utilize a variety of instruments, methods and techniques.



  • Instruments:

    • GPR - Ground Penetrating Radar

    • EM "Metal"-Detector (split box - able to detect metallic/conductive features)

    • EM Utility Line Locators


  • Utilities typically detected:

    • Electric lines

    • Water lines

    • Gas lines

    • Communication lines

    • Sewer and Drainage lines


  • Procedures - A 4 step process:


    • Locate underground lines associated with above-ground features such as light posts, manholes, valves, meters, etc.


    • The EM line locators are used in active and passive methods to investigate for utilities with no apparent exposures.


    • The EM "metal"-detector is used to locate conductive subsurface utilities and features, such as USTs, buried Dry Wells, etc.


    • The GPR system is pushed across an area of concern in an attempt to locate conductive and non-conductive features of interest.
UST Investigations:

  • If vents, fill ports, or product/return lines are present:

    • EM line locators are used in an attempt to locate UST related piping.

    • If the lines are detected, apparent termination points are investigated using the EM "metal"-detector and GPR in an attempt to identify the associated UST.


  • If no above-ground features are present, areas where USTs are expected will be investigated with the EM "metal"-detector and the GPR according to the following:


    • If the UST is expected to be metallic:

      • Areas of concern are investigated using the EM "metal"-detector.

      • Metal-detector anomalies with the potential of representing a UST are further investigated with the GPR in an attempt to detect reflections typical of a UST and possibly determine a depth.

      • GPR is used over select areas to aid in UST detection.


    • If the UST is expected to be non-metallic:

      • Areas of concern are investigated with the GPR in an attempt to detect reflections typical of USTs.
Additional Services:

  • Concrete Investigations – High Resolution (HR) GPR

    • HR GPR can typically investigate through up to ~15 inches of concrete, depending on the age and type of concrete.

    • HR GPR can be used to mark locations of rebar and other features within concrete.

    • Identities of features detected in GPR data cannot be confirmed without physical verification.


  • Deliverables - Figures and Report


    • Figures - If requested, the results can be mapped onto a scaled orthoimage or existing site plan, if available. Attempts are made to make locations as accurate as possible, when appropriate, but it should be noted these are not surveyed maps. When necessary, a GPS unit may be used for more accurate mapping.


    • Report - A written report of the investigation results and limitations can be provided. The report format can be adapted to specific project requirements.

Every project and every job site is unique. CGE takes time to understand expectations of every project to determine a safe, effective and efficient approach.
